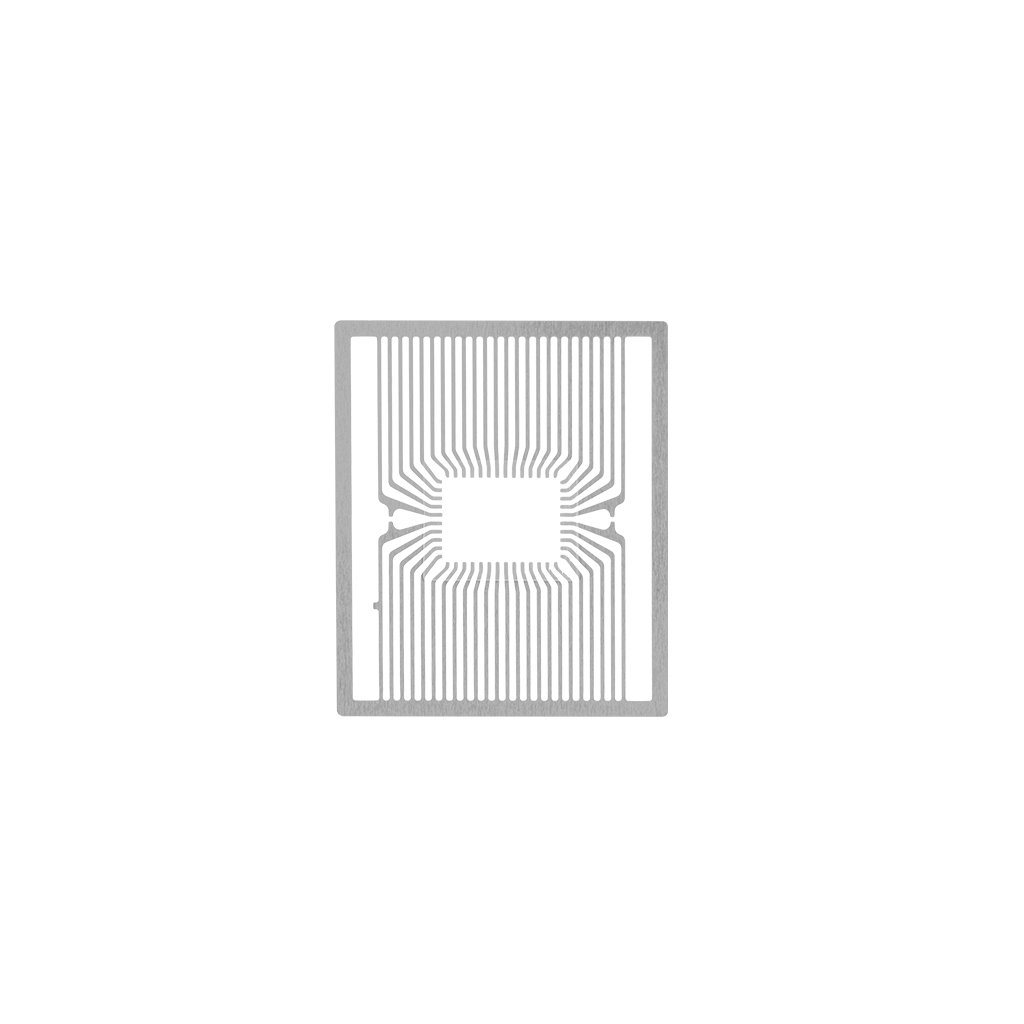

High-Precision SOP Lead Frames (4J42 Fe-Ni Alloy)

High-Precision SOP Lead Frames (4J42 Fe-Ni Alloy)

Serving as the reliable internal skeleton for Small Outline Packages (SOP), our precision lead frames deliver the robust structural and electrical foundation required for modern, space-efficient ICs. Material & Precision: Manufactured through advanced high-speed stamping and precision etching from premium 4J42 Fe-Ni Alloy, ensuring exceptional wire bondability and seamless integration into automated packaging lines.

Contact Us

Datasheet

Technical Specifications

Process Capabilities

  • Pin Count Configurations: Comprehensive range including 8, 14, 18, 20, 24, and 48 pins to support diverse SOP industry standards.
  • Manufacturing Precision: High-speed stamping and chemical etching capabilities with stringent dimensional tolerances (e.g., ±0.05 mm) for stable high-volume production.
  • Base Material: Premium 4J42 Fe-Ni (Iron-Nickel) Alloy, providing robust mechanical strength and a stable CTE match for advanced applications.
  • Bonding Area Optimization: Integrated clad Aluminum Strip provides a pristine, oxidized-free surface, ensuring high-yield and reliable aluminum wire bonding.
  • Geometric Control: Exceptional raw frame flatness and strict lead pitch control to prevent interconnect failures during automated pick-and-place and molding processes.

Applications

  • Amplifiers and Analog ICs
  • Logic and Interface ICs
  • Memory Chips (EEPROMs & Flash Storage)
  • Power Management ICs (PMIC)
  • Automotive and Industrial Control Modules

Manufacturing Advantages

As a dedicated manufacturer of precision IC packaging components, Sanjin Electronics offers extensive customization for SOP lead frames. Beyond our wide variety of standard pin counts, we are fully equipped to co-develop proprietary designs tailored to your unique die specifications. We actively support NRE (Non-Recurring Engineering) tooling investments for qualified projects, enabling you to create a highly reliable, cost-effective custom lead frame solution without prohibitive upfront costs.
